Air Knives
Air knives are most commonly used to blow away liquids, grime, airborne debris, etc. from surfaces or objects. Silvent air knives create a broad and effective flow of air that produces a pneumatic scraping effect without mechanical contact. All Silvent air knives feature the optimal combination of high blowing force, low energy consumption and low noise levels.
Featured Products

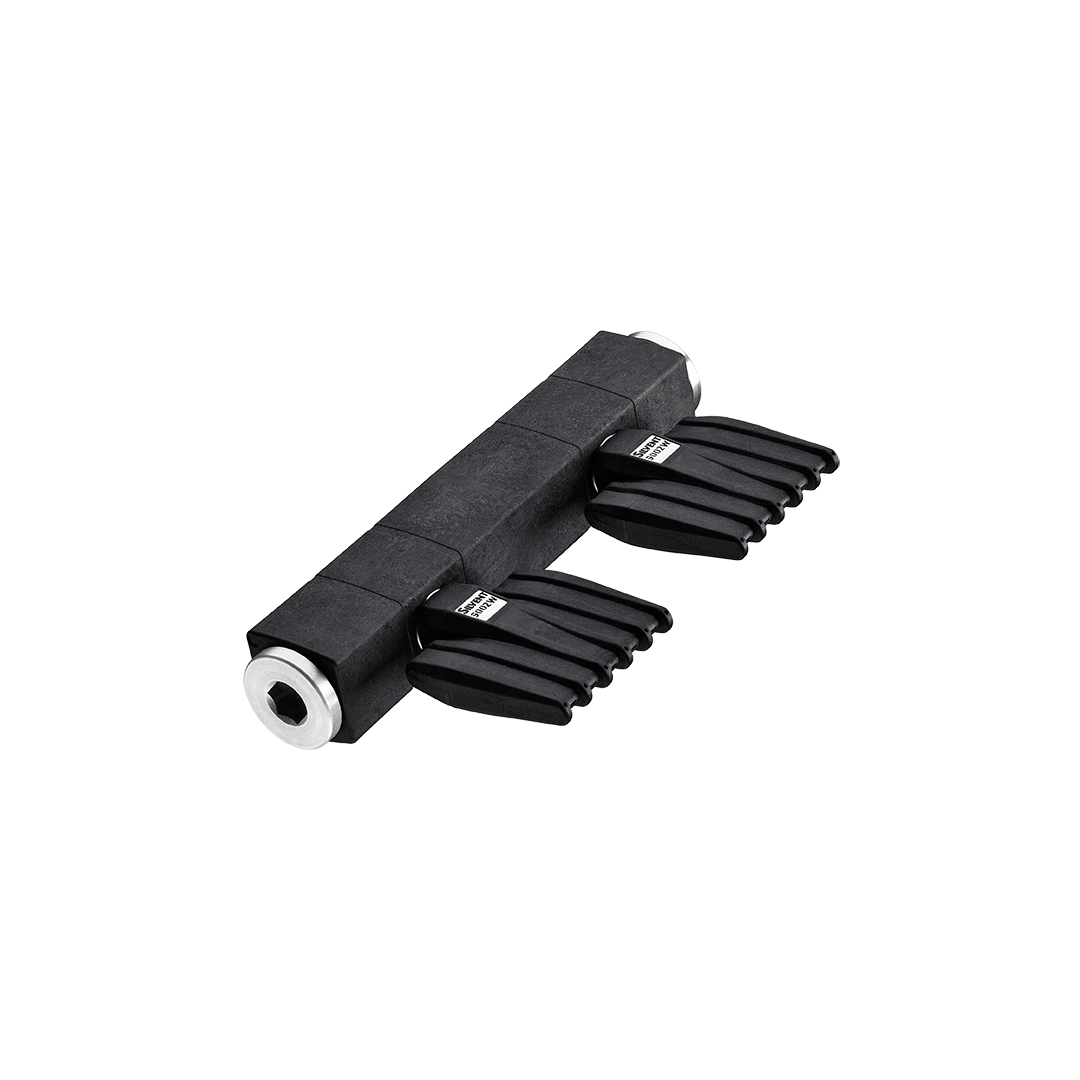

SILVENT 304 Z+ is a version of the 310 Z+ that is used for applications that require less blowing force. The SILVENT 304 Z+ provides an air cone diameter of 192 mm (7.61”) at a blowing distance of 150 mm (6”). The blowing force is 12.0 N (2.6 lbs.).
Modular air knife system (ZYTEL)

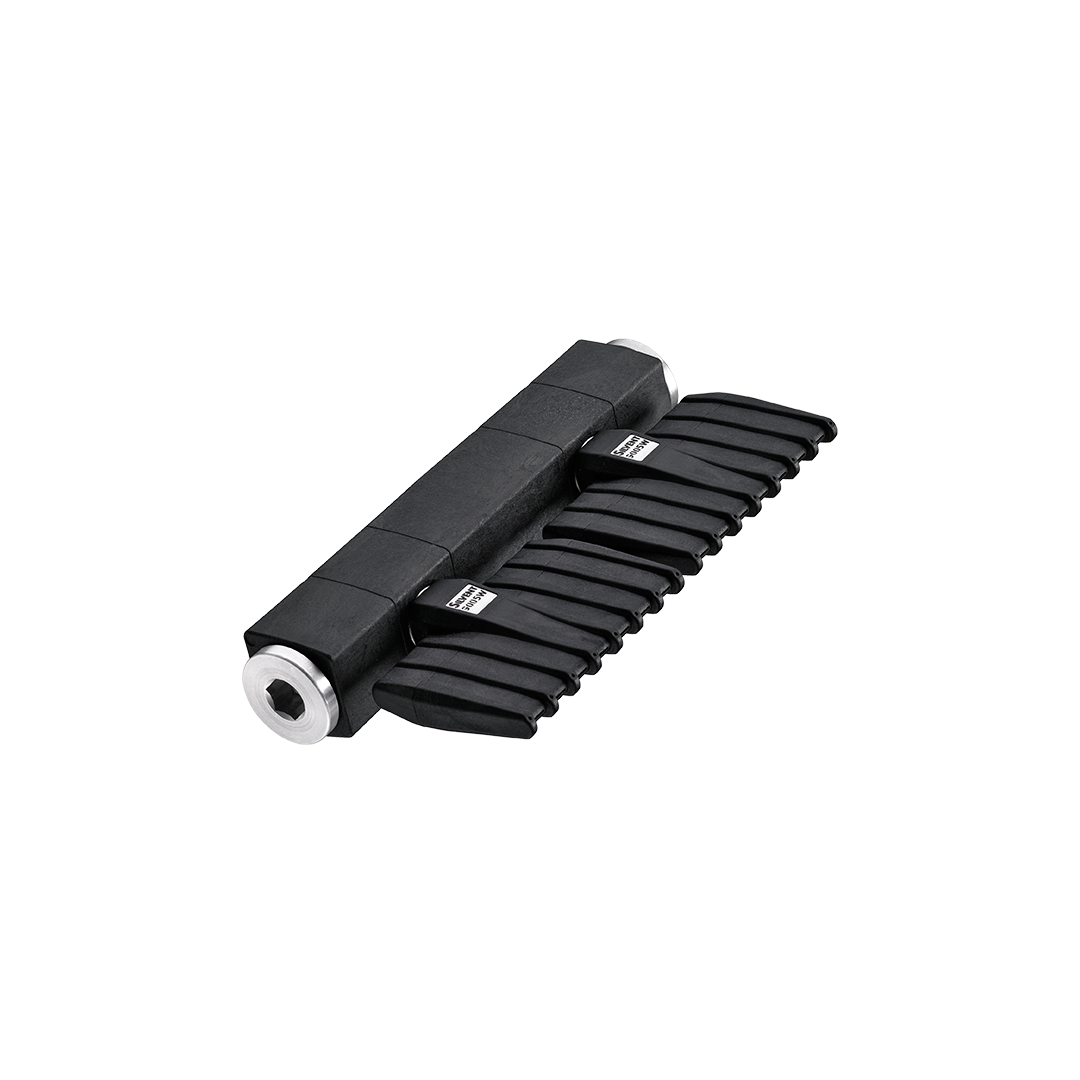

SILVENT 310 Z+ is a modular, energy-efficient air knife that generates an extremely strong and effective blowing force with an exceptionally low sound level. Compressed air is optimally used in this air knife. Its unique design introduced a completely new blowing technology feature. The aerodynamic nozzle design achieves the effect by maximizing entrainment of air. Each orifice is also uniquely designed to optimize the entrainment area. SILVENT 310 Z+ modules can easily be combined to achieve the desired length of the air knife (see SILVENT A 12 in accessories).
Modular air knife system (ZYTEL)

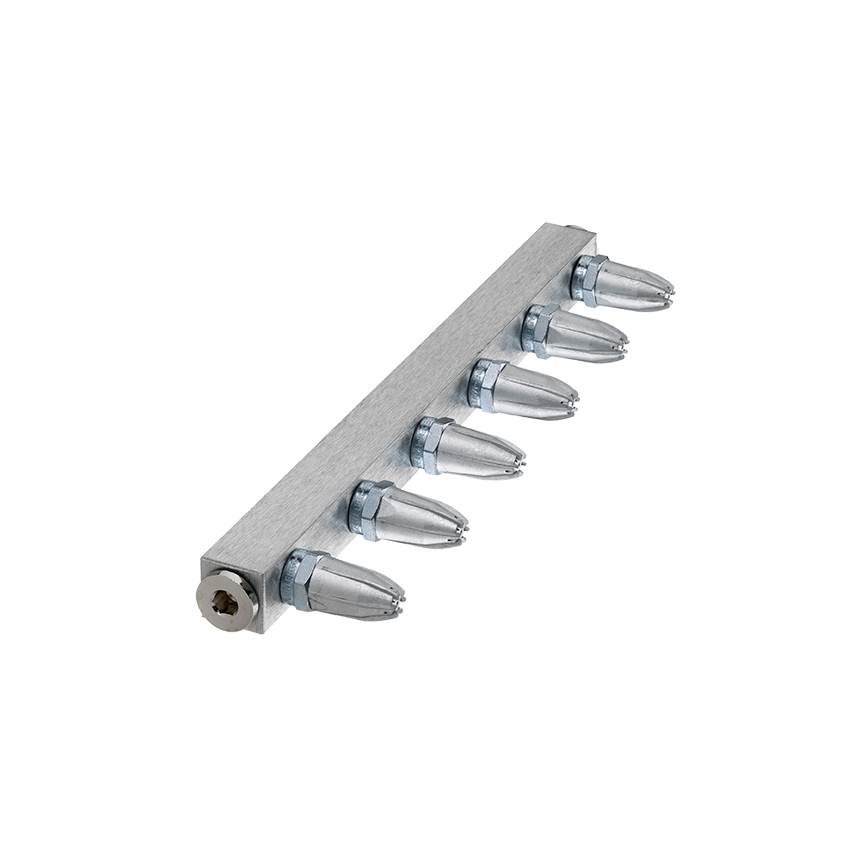

SILVENT 302 L - 306 L: with 209 L nozzles. For applications that require a curtain of air across a broad surface. Typical areas of application include air cleaning, curtains around doors and entrances, paint drying, cleaning of conveyor belts, plywood sheets etc.
Air curtain (zinc)

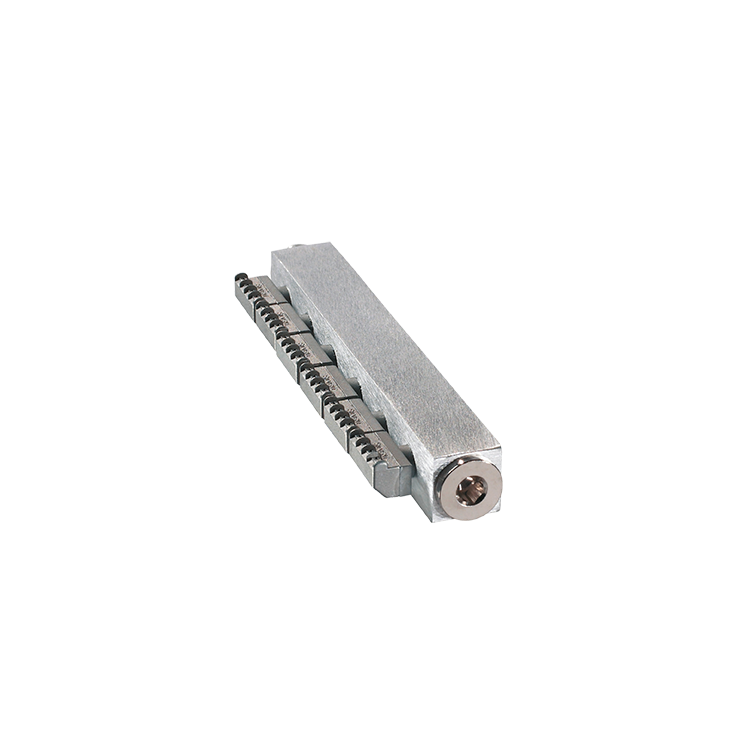

SILVENT 362 - 366: a quiet and efficient air knife with angled SILVENT 961 flat nozzles and a specially designed aluminum manifold. The small mounting dimensions make these air knives suitable for machine designs where space is limited. Generates a broad but flat air cone and combines the advantages of low noise level, low air consumption and high blowing efficiency.
Mini-air knife (zinc)

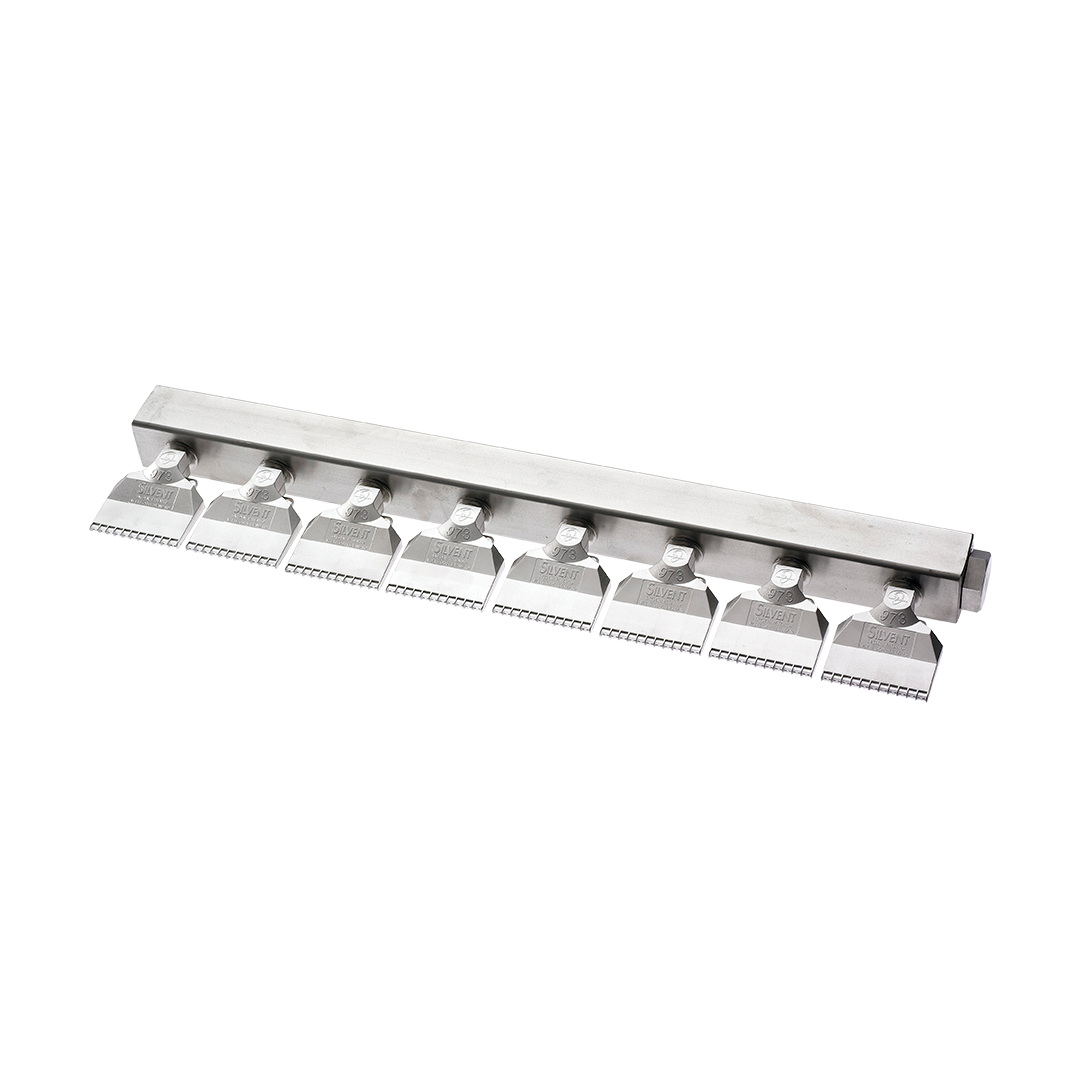

SILVENT 372 - 378: robust stainless steel air knife with 973 nozzles and a specially designed manifold. Made entirely of stainless steel and thereby suitable for even the most demanding applications, such as those involving aggressive chemical environments, high ambient temperatures or the stringent requirements of the food processing industry.
Stainless steel air knife

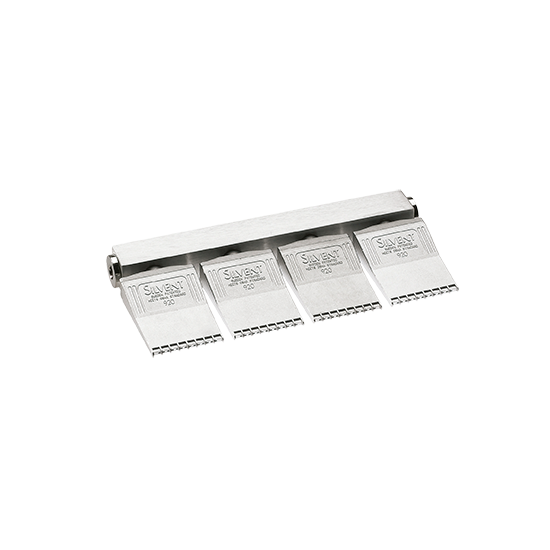

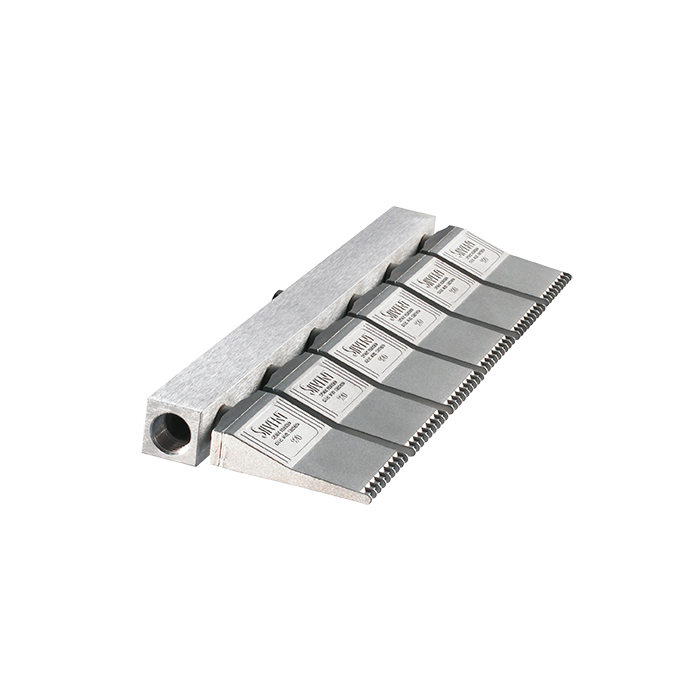

SILVENT 392 - 396: air knife with 920 A flat nozzles and a specially designed aluminum manifold. Air knives have been installed in a wide range of industrial applications. Cooling rollers, drying tobacco, dispersion of powdered paint, blow-off of emulsions, etc. are but a few.
Air knife (zinc)
SILVENT 392 - 396: air knife with 920 A flat nozzles and a specially designed aluminum manifold. Air knives have been installed in a wide range of industrial applications. Cooling rollers, drying tobacco, drying parts, blow-off of emulsions, etc. are but a few.
Air knife (zinc)
